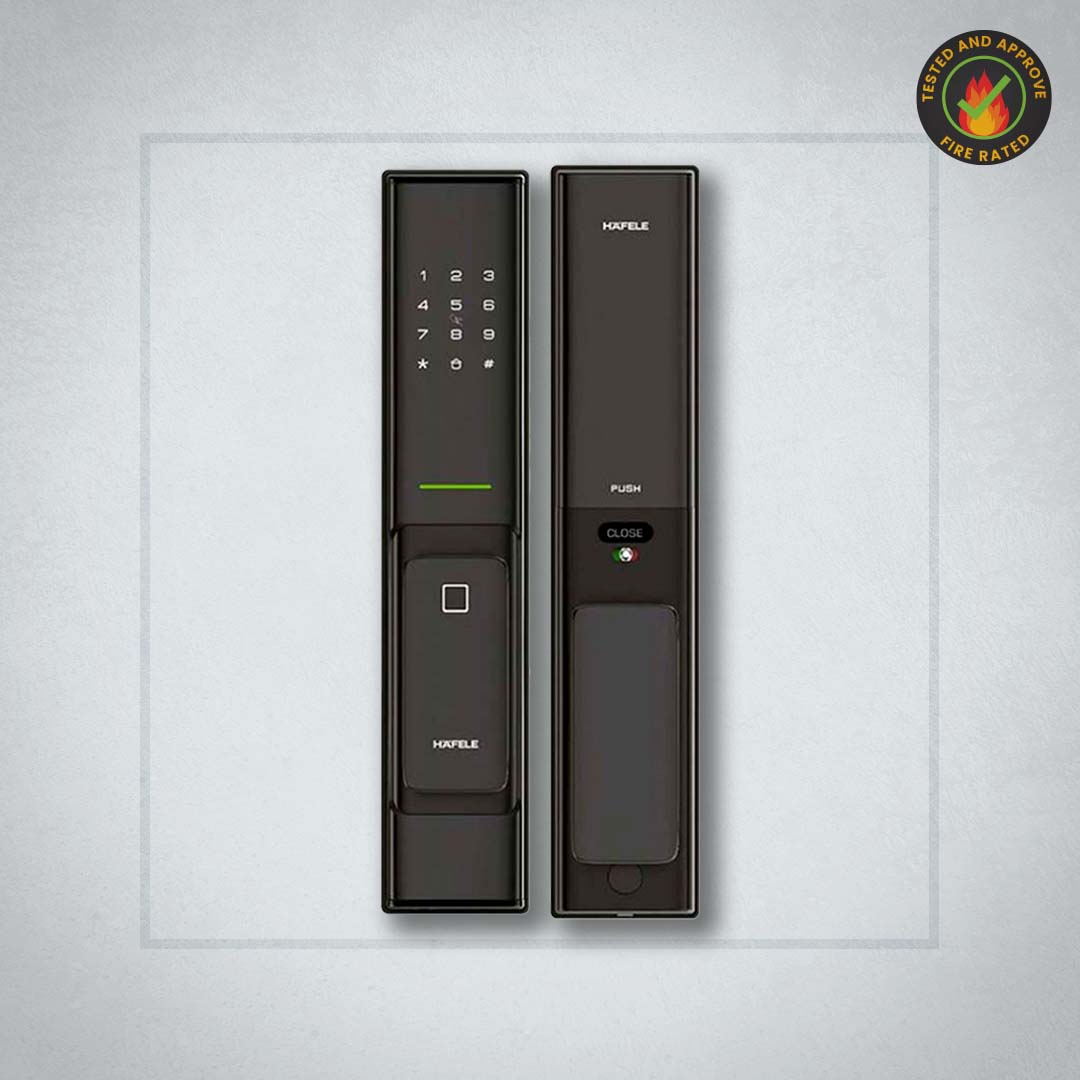

Hafele PP8100 Digital Lock Specification & Review:

Authentication Methods:

Bluetooth key
PIN code
Unlock with your fingerprint.
RFID tags
Physical key
  • Managed by a master password and user password
  • Double verification function by combine 2 in 3 access ways (Fingerprint/Password/Key card)
  • Private mode/Double locking mode can be activated from inside
  • Away mode/Defense mode to increase security for your house in case no one home
  • Auto/Manual locking mode is changeable
  • If incorrect fingerprint/PIN code/Card are attempted 10 times in a row, the related verification method will be lockout for 5 minutes
  • Low-battery warning by sound
  • Electric shock resistance
  • A password can be entered with a random number to prevent stealing
  • Silent mode can be activated when needed
  • Smart home integration with Z-wave module (optional)
  • Voice guide feature (English / Chinese)
  • Tested and Conformed to SS 332:2018+A1:2022
  • (Cyclic tested up to 200,000 times)
  • Tested and achieved fire rating of 60 mins

Technical Features:

Warranty 2 Years
Access method Fingerprint, PIN Code, RFID card, Mechanical Key, Bluetooth
Type Push & Pull
Material Aluminum, Zinc, ABS Plastic
Storage capacity Fingerprint 100 fingerprints
Magnetic cards 100 cards
Password 1 master password & 10 user passwords
Backup source 5V battery via Micro USB port
Shockproof Yes
Low battery warning Yes
Wrong code warning Yes
Copy protection Yes
External force warning Yes
Fire sensor Yes
Remote control No
Voice Guide Yes
Smart connection Z-wave (Optional)
Outer size 78.5 x 394 x 76.5 mm
Size in 78.5 x 394 x 69.5 mm
Power Supply 6V (alkaline battery, 1.5V x 8 tablets, size AA)
Operating temperature -25ºC to + 55ºC

Digital convenience meets life-saving performance. Our fire rated locks upgrade your space with key less style and security. But when temperatures surge, their heavy-duty components and mechanisms are rigged to prevent fire from damaging or unlocking the latch from the door, the major role of this fire rated lock is resisting fire for a longer period and giving us an alert when a fire or smoke occurs nearby.

So, when crisis strikes, they’ll safeguard your access or lock down, allowing escape or limiting damage without fail. We advise you not to take advantage on cheap priced or uncertified locks that that might risk lives, rather come explore our fire-resistant, certified and tested fire rated locks – as it can bring the future of home safety within reach.
