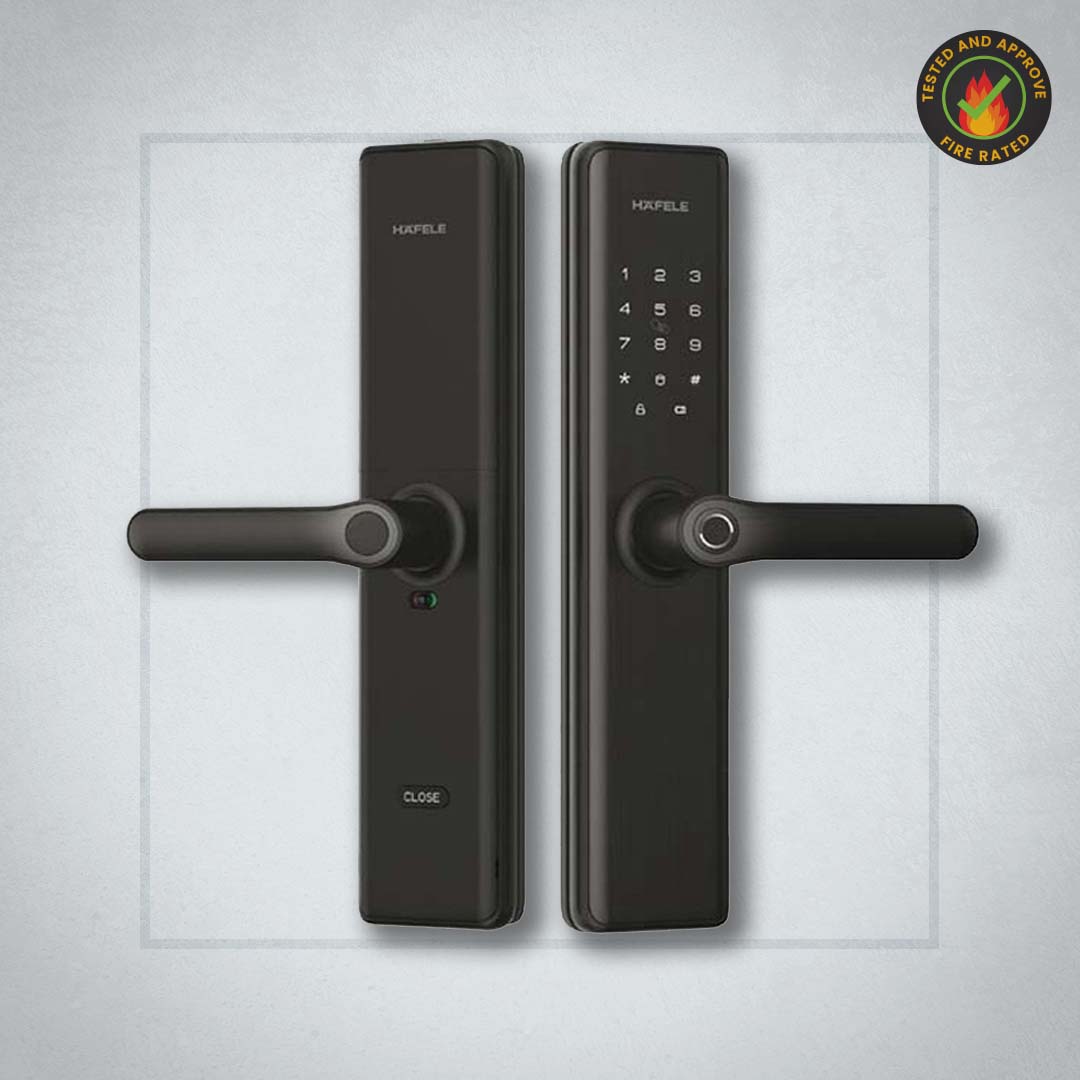

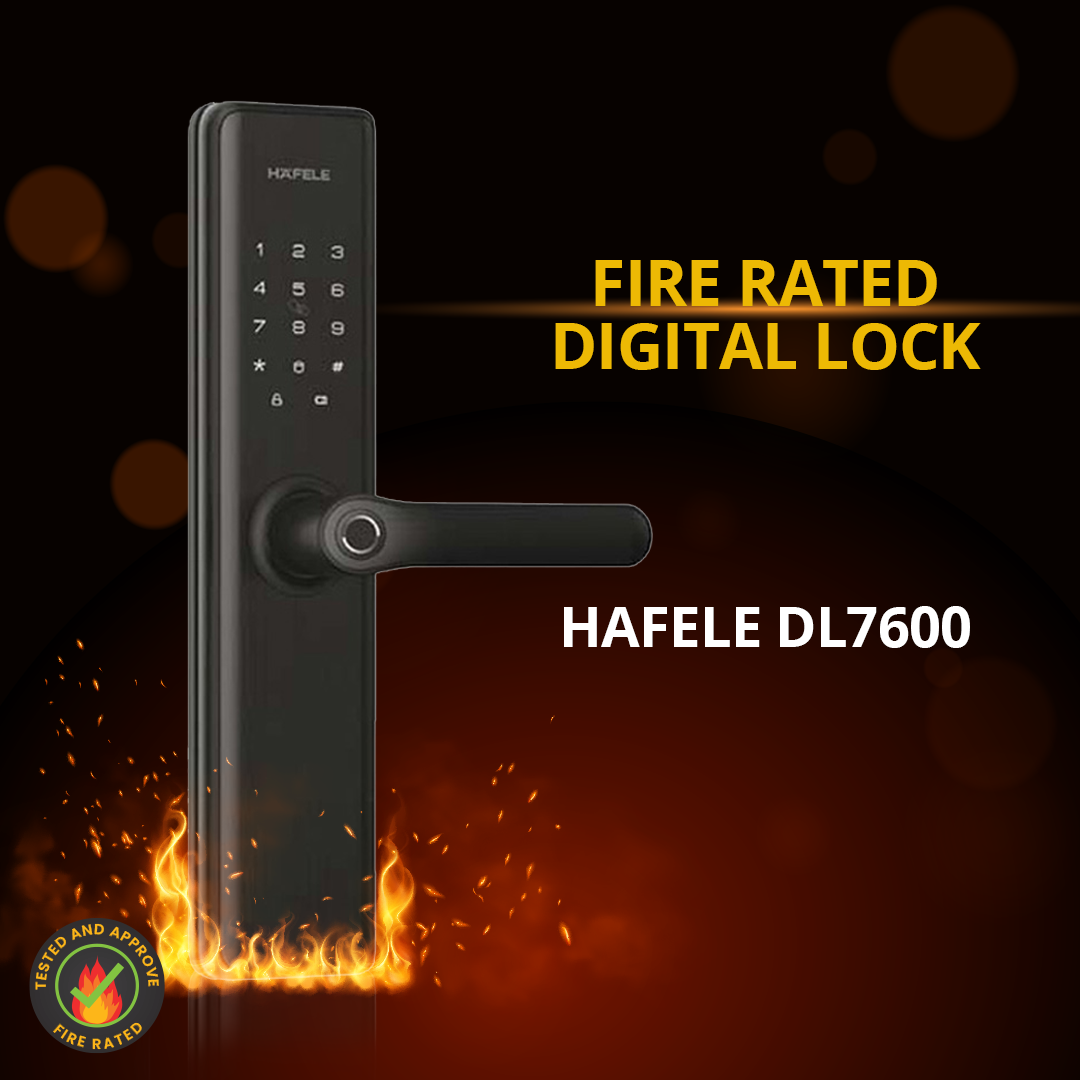

Hafele DL7600 Lever Handle Fire Rated Digital Door Lock Specification


Authentication Methods:

Bluetooth key
Pass code
Unlock with your fingerprint.
RFID tags
Physical key
    • Away mode / Defense mode to increase security for your house in case no one home.
    • Auto / Manual locking mode is changeable.
    • Managed by a master password and user password.
    • Häfele Smart Lock APP: Open on smartphone App via Bluetooth; Setting easier; Checking history.
    • Double verification function by combine 2 in 3 access ways (Fingerprint / Password / Key card).
    • Private mode / Double locking mode can be activated from inside.
    • A password can be entered with a random number to prevent stealing.
    • Voice guide feature (English / Chinese).
    • Smart home integration with Z-wave module (optional).
    • Low-battery warning by sound.
    • Tested and Conformed to SS 332:2018+A1:2022
    • Cyclic tested up to 100,000 times
    • Tested and achieved fire rating of 30 mins

Hafele DL7600 Lever Handle Digital Door lock Technical Features:


Warranty 2 Years
Matt Black Glossy Copper
Material Al, Zn, ABS
Front dimensions(W x H x D)mm 76(W) X 25(D) X 341(H) mm(include handle)
Back dimensions(W x H x D)mm 80(W) X 27(D) X 359(H) mm(include handle)
Mains Voltage 6V (alkaline battery 1.5V x 8ea, AA size)
Operating Temperature Range From -25°C to +55°C
Door Thickness 35-60mm
Memory Storage Fingerprint: 100 Fingerprint, Key card: 100 user cards, Password: 1 master password, 10 user passwords
Power Source 6V(alkaline battery 1.5V x 8ea, AA size)
Emergency power 5V power bank via Micro USB port
Door Type Wood Door
Door Gap Minimum 3mm
Door Thickness 35-60mm
Door Style 120mm


Digital convenience meets life-saving performance. Our fire rated locks upgrade your space with key less style and security. But when temperatures surge, their heavy-duty components and mechanisms are rigged to prevent fire from damaging or unlocking the latch from the door, the major role of this fire rated lock is resisting fire for a longer period and giving us an alert when a fire or smoke occurs nearby.

So, when crisis strikes, they’ll safeguard your access or lock down, allowing escape or limiting damage without fail. We advise you not to take advantage on cheap priced or uncertified locks that that might risk lives, rather come explore our fire-resistant, certified and tested digital locks – as it can bring the future of home safety within reach.
